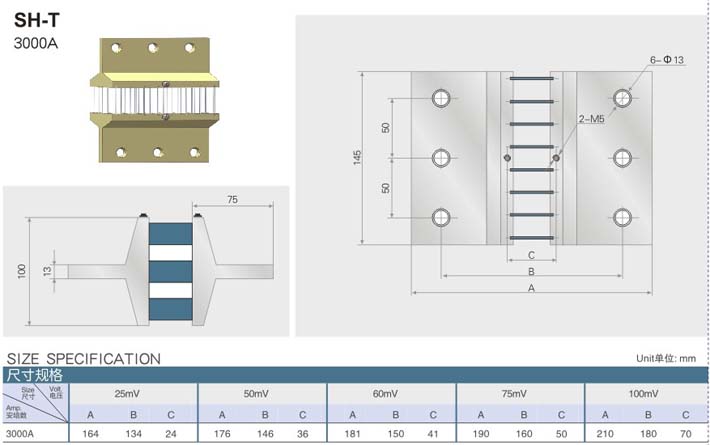

SH-T 3000A

Use:
The interchangeable shunts are used to multiply the measuring range of current of measuring instruments.

Application：
For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument and meter,Dc power system,etc.

Main technical data:

1)Rated voltage drop range: 1A-50A 10mV~800mV；51A-2500A  10mV~300mV; 2501-12000A 10mV~100mV

2)Ambient condition-25～+40℃; Relative humidity≤80%（35℃）

3)Temperature rise: Put in rated current for 2hr, after the temperature rising steady test it: When the rated current less than 100A, the temperature rise should be no more than 80K; When the rated current more than 100A, the temperature rise should be no more than 120K.

4)Over load performance: 120% of rated current for 2hours.

5)Thermoelectric potential influence: no more than 50% of the index level.
